GARBAGE HYDRAULIC COMPACTOR
Garbage Compactor – waste compactor for 1.1cbm bins. It was designed to be useable at very narrow and low spaces. It has a very rugged construction, standardized hydraulic and electrical components. In order to prevent the rolls from damages, the compactor – base lifts the bin. The rolls have no contact to the floor while compacting.
The compactor can be used in and outside. Open the lid of the container and push the container onto the platform of the compactor. The compaction plate must be lifted. Possible also for other bins like 770 litter bins. Operation with two hand, One for the switch for the e-motor and one for the hydraulic lever. Total Weight: 245kg Electric Connection: 220 Volt
GARBAGE PORTABLE COMPACTOR
Waste-compactor for 1,1m3 bins saves space and money

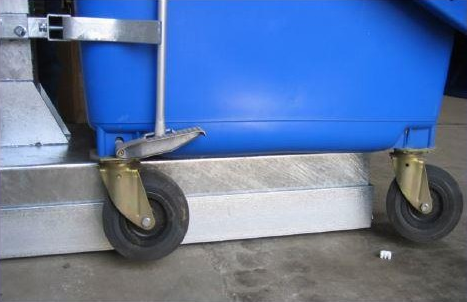

In order to prevent the rolls from damages, the compactor -base lifts the bin. The rolls have no contact to the floor while compacting
- Compact your waste and recycables
- The costs will be reduced through volume-reduction
- Need less containers - save space
- Use valuable space in your building for better functions
DEFLATE THE AIR OUT OF YOUR WASTE
Waste and recycable waste can be filled in the normal 1,1m3 bins and compacted by a pivoting compaction plate. The volume can be reduced up to 1:3.As quantity of waste and costs are constantly rising, the unit is cutting both: quantity and costs

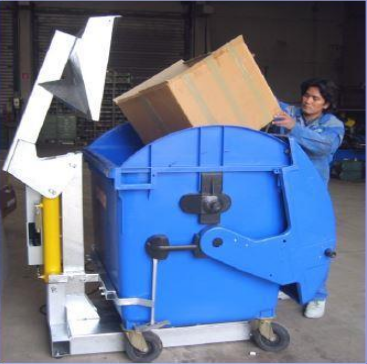

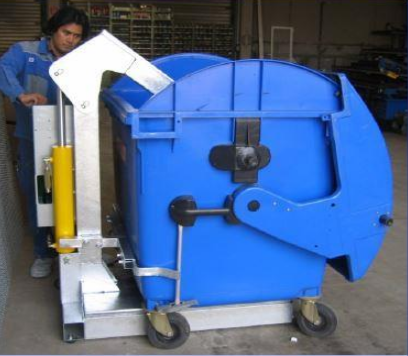

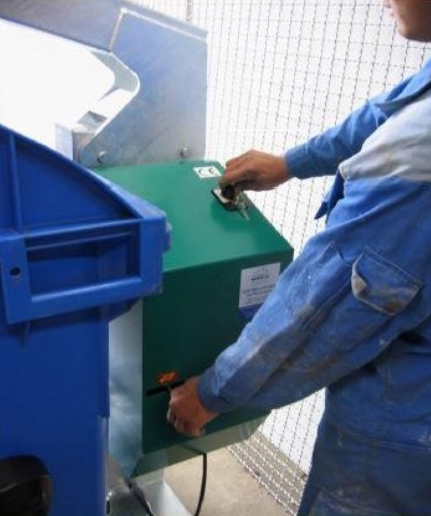

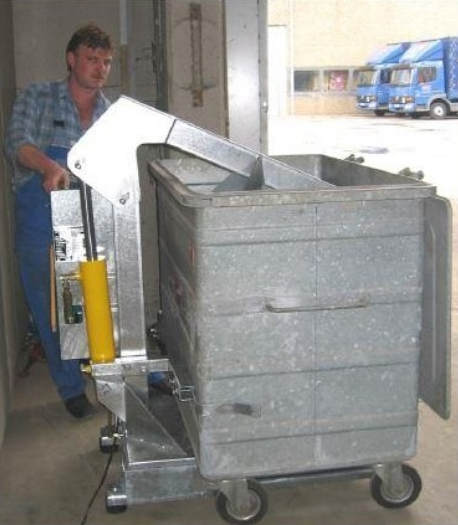

The compactor can be used in- and outside. Open the lid of the container and push the container onto the plattform of the compactor. The compaction plate must be lifted. There is enough space for filling in. When the container is full, the compaction plate manually operated with two hands compacts inside the bin. It is absolutely full as soon as there is no more space for filling in more.The container will be lifted in order to protect the rolls.Possible also for other bins like 770 liter bins etc. Operation with two hands. One for the switch for the e-motor and one for the hydraulic lever.
| Motor | Total Weight | Electric Connection | Stroke | Pressure | Compaction Plate | Dimensions Over all |
|---|---|---|---|---|---|---|
|
1 KW |
245 KG |
220 Volt |
Curved |
32000 dN |
1.000×630 |
1.980×1.200×1.250 |
- Machine is supplied without bins. Bins can be quoted separately as per customer’s request.
